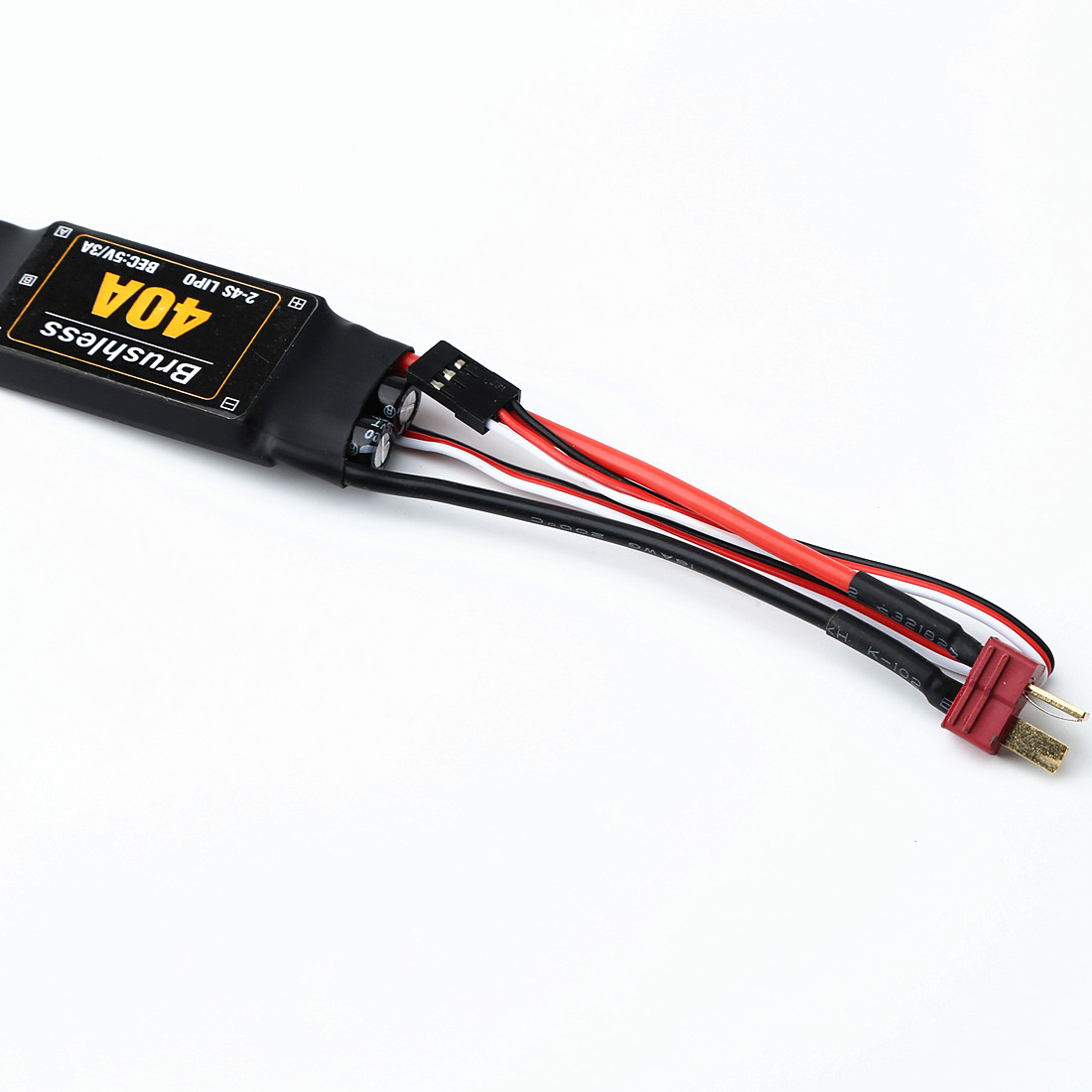

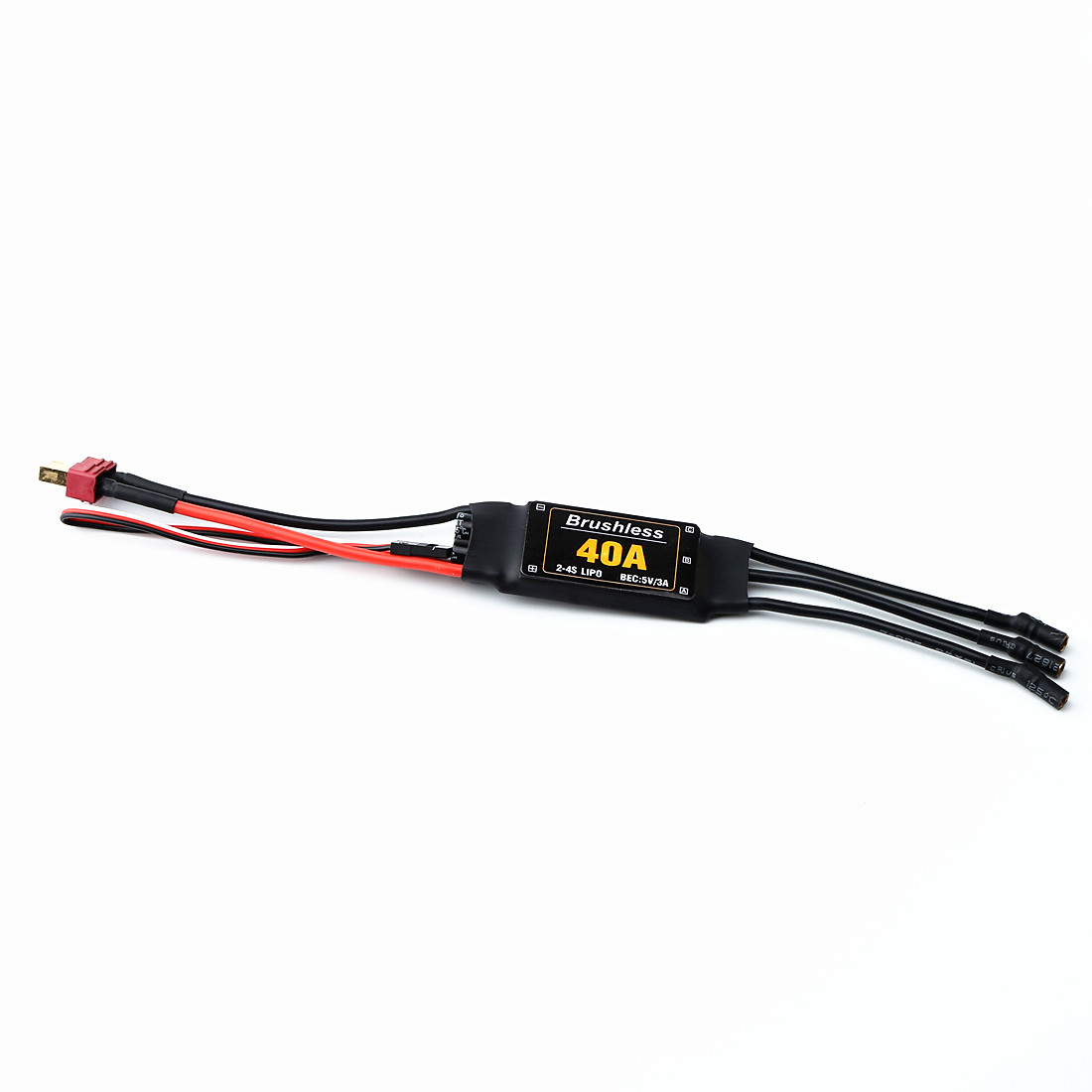

Specification Product Name: Brushless ESC Color: as shown Types: long, short Size: (approx) 68x25x8mm Current: 40A Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds) Power input: 2-4 lithium batteries(Not Included) BEC output: 5V@3A (linear regulator mode - linear mode) Maximum speed: 210,000 RPM for 2-pole motor, 7000 RPM for 6-pole motor, 35,000 RPM for 12-pole motor Packing list: 1*Brushless ESC Notice: All images and descriptions are for illustrative purposes only. Product specification, functions and appearance may vary by actual usage. The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement. We recommend you could check with sales for exact offers if need.
40A Speed Controller Brushless ESC Drone Helicopter FPV Parts Multicopters Durable Components RC Toys Quadcopter Accessories
Product Price
$27.98 $13.99
Product Review Score
4.67 out of 5 stars
55 reviewsProduct Summary
Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected. Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters. Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection. User programmable. Compatible with Lipo and NiMH battery. Timing can be changed to suit for different brushless motors. Multiple procedure methods support: transmitter stick, LED procedure Card. Very easy to procedure at home or in flying field.
When you order through these links, we may earn a commission at no additional cost to you.
Additional Product Details
